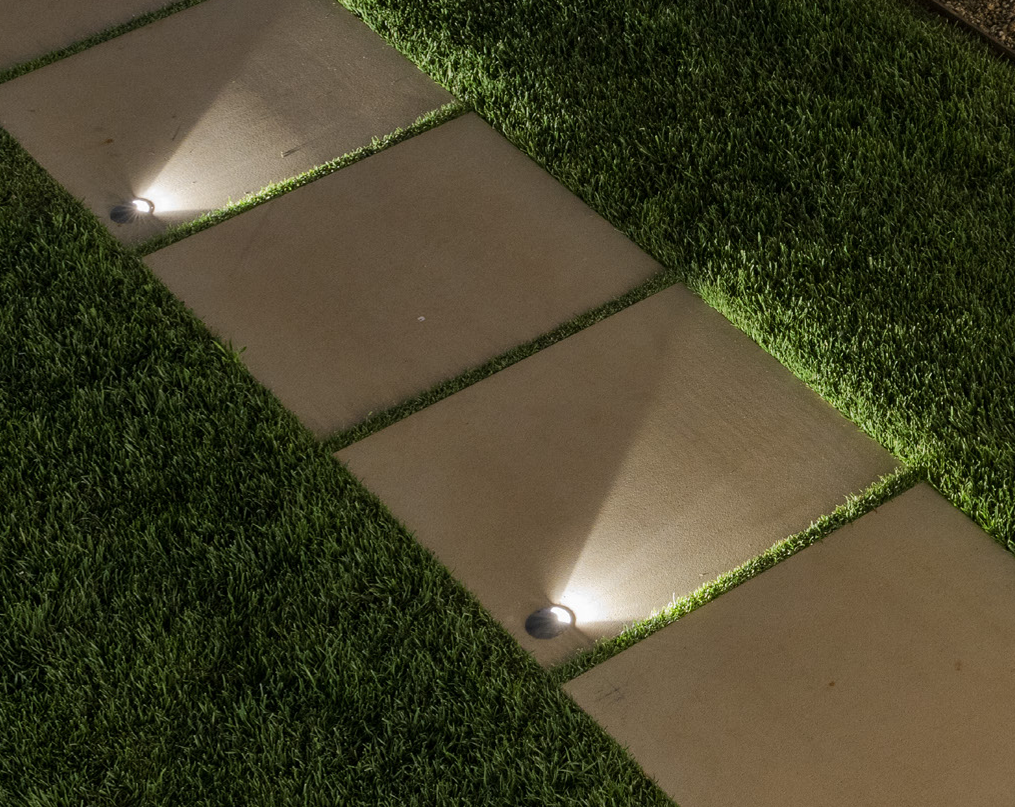

In-grade grazing luminaire with one light sector 90°, two light sectors 90°, one light sector 180°
Specifications

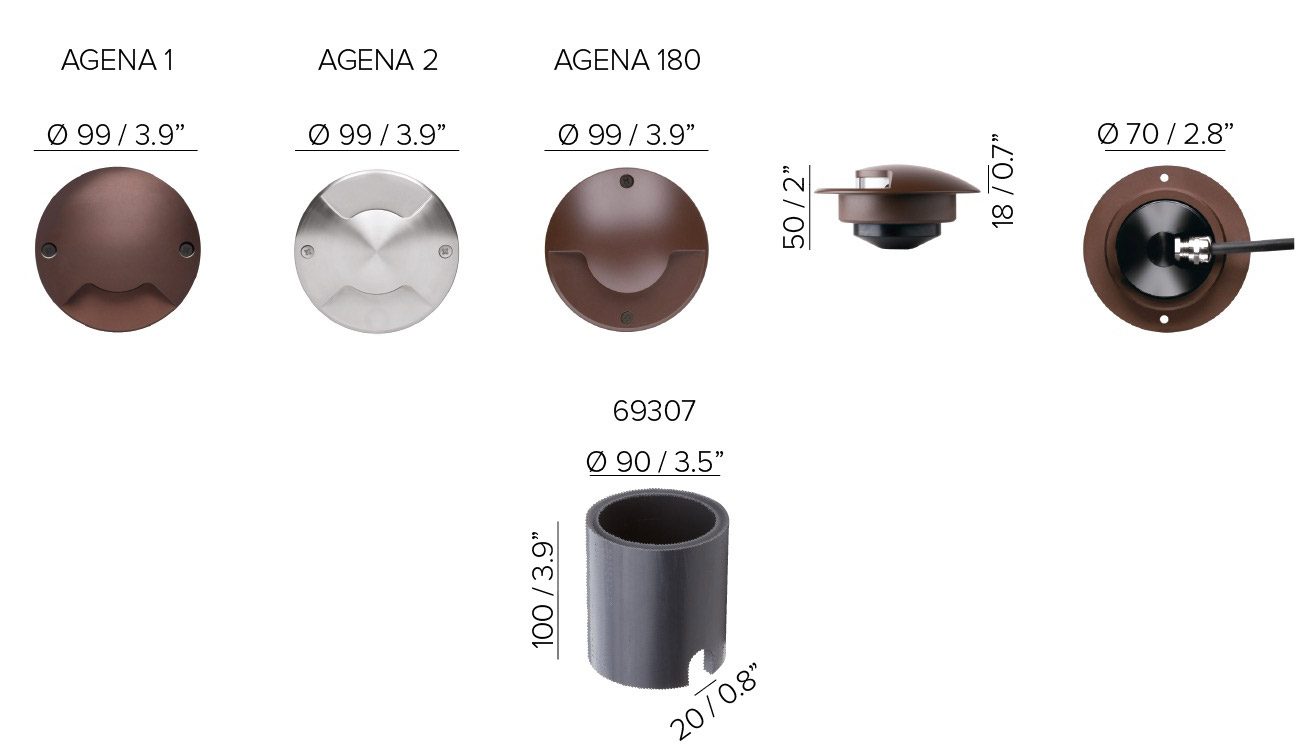

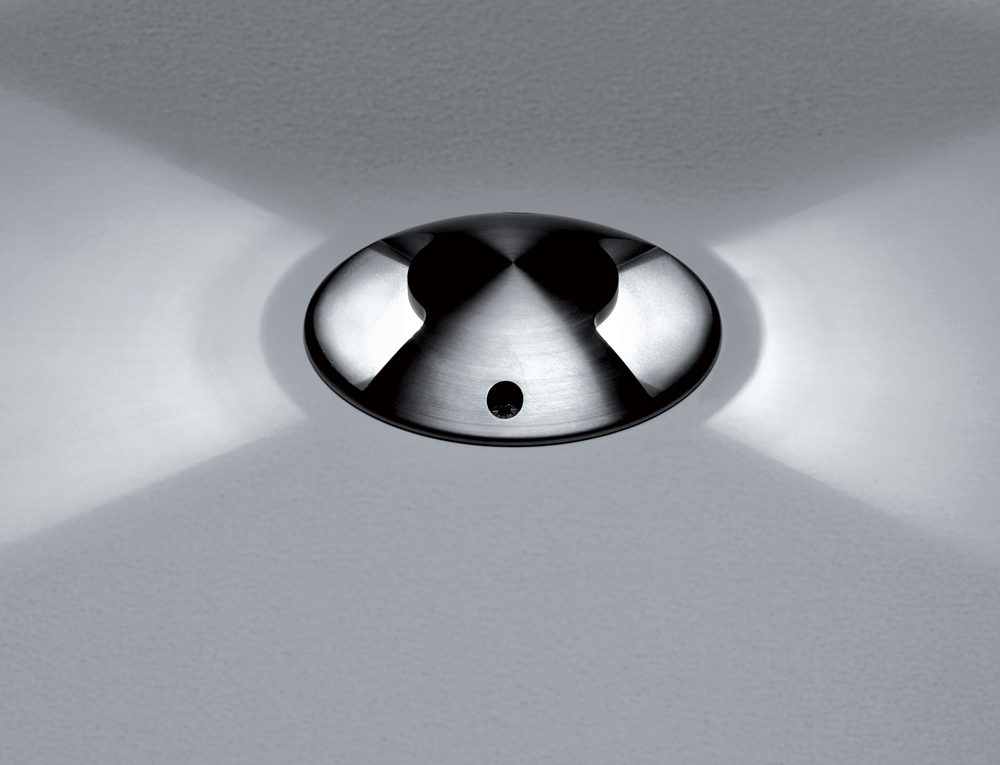

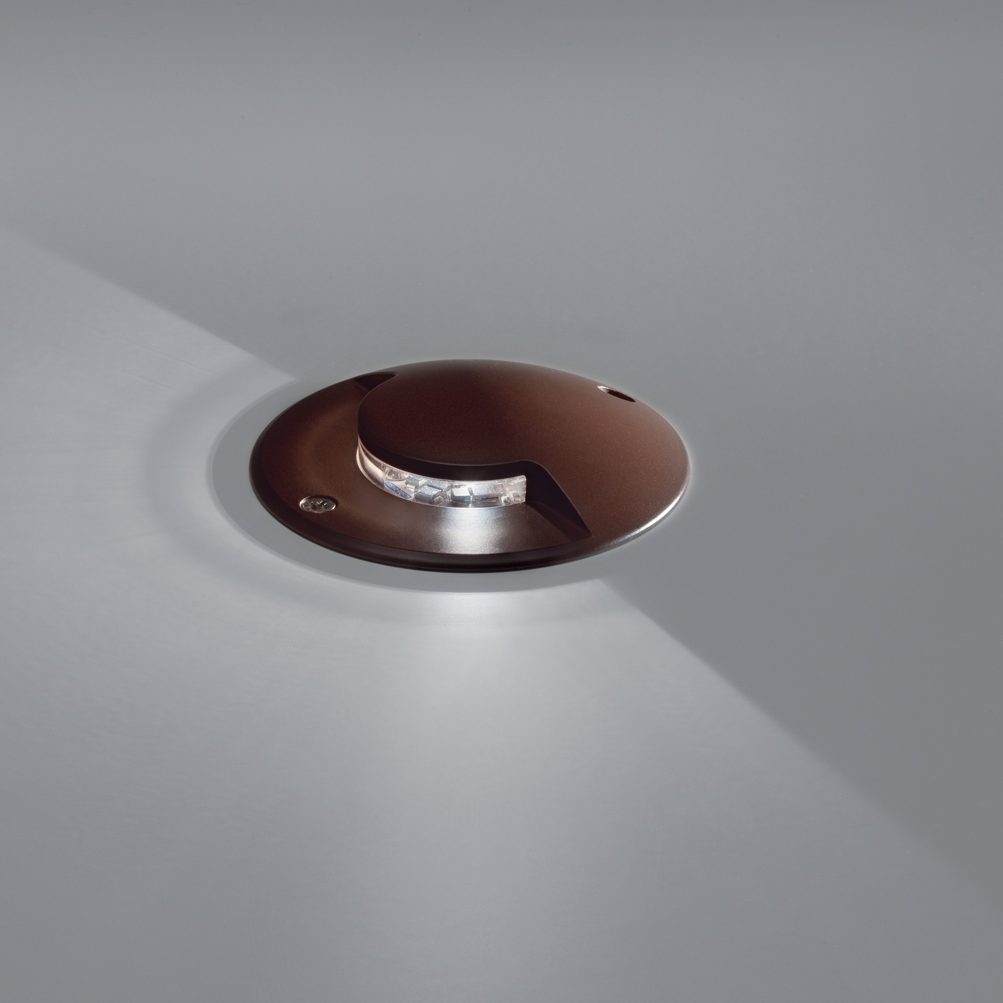

Available in three versions: AGENA 1 – one light sector 90°, AGENA 2 – two light sectors 90°, AGENA 180 – one light sector 180°
Drive over load of 4,000 lbs
Very shallow fixture, only 2″
Diameter: 3.9”
Water stop technology: built in protection from water infiltration and moisture. Suitable for wet location
With the stainless steel finishing it can be installed in the most challenging exterior environments
Available in colour temperatures: 2200K CRI80, 2700K CRI93, 3000K CRI93 or 4000K CRI93
Wattage: 3W at 24V DC
Built-in unpolarized electronic system. Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the power. This feature guarantees that the luminaire will last with ambient temperature up to 140° F
Dimming available in Phase or 0-10v, other dimming options available upon request.
