BUTTON SQ DO – Darktools

Indicator Lights

BUTTON SQ DO

B-Light

BUTTON SQ DO

Price on demand

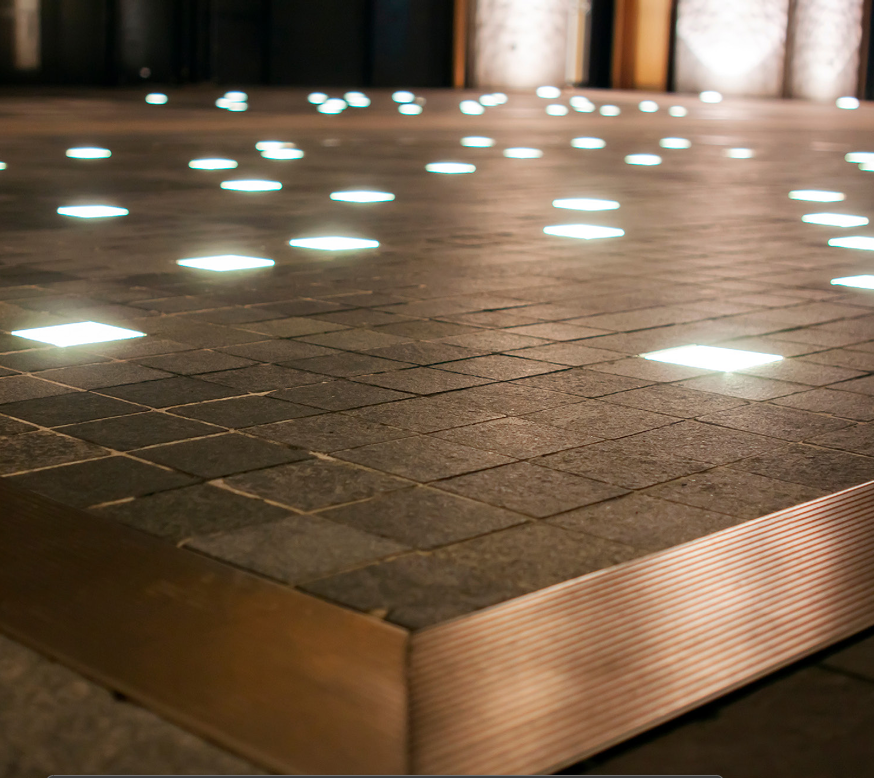

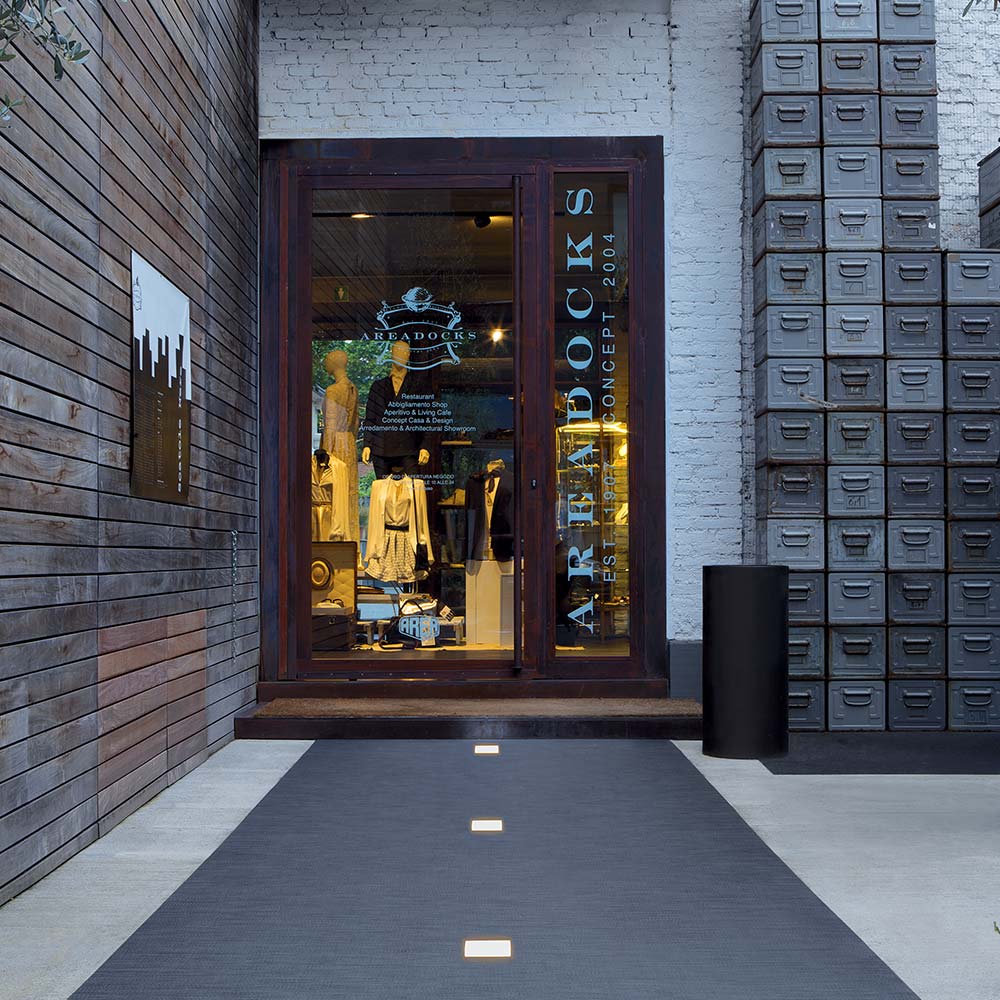

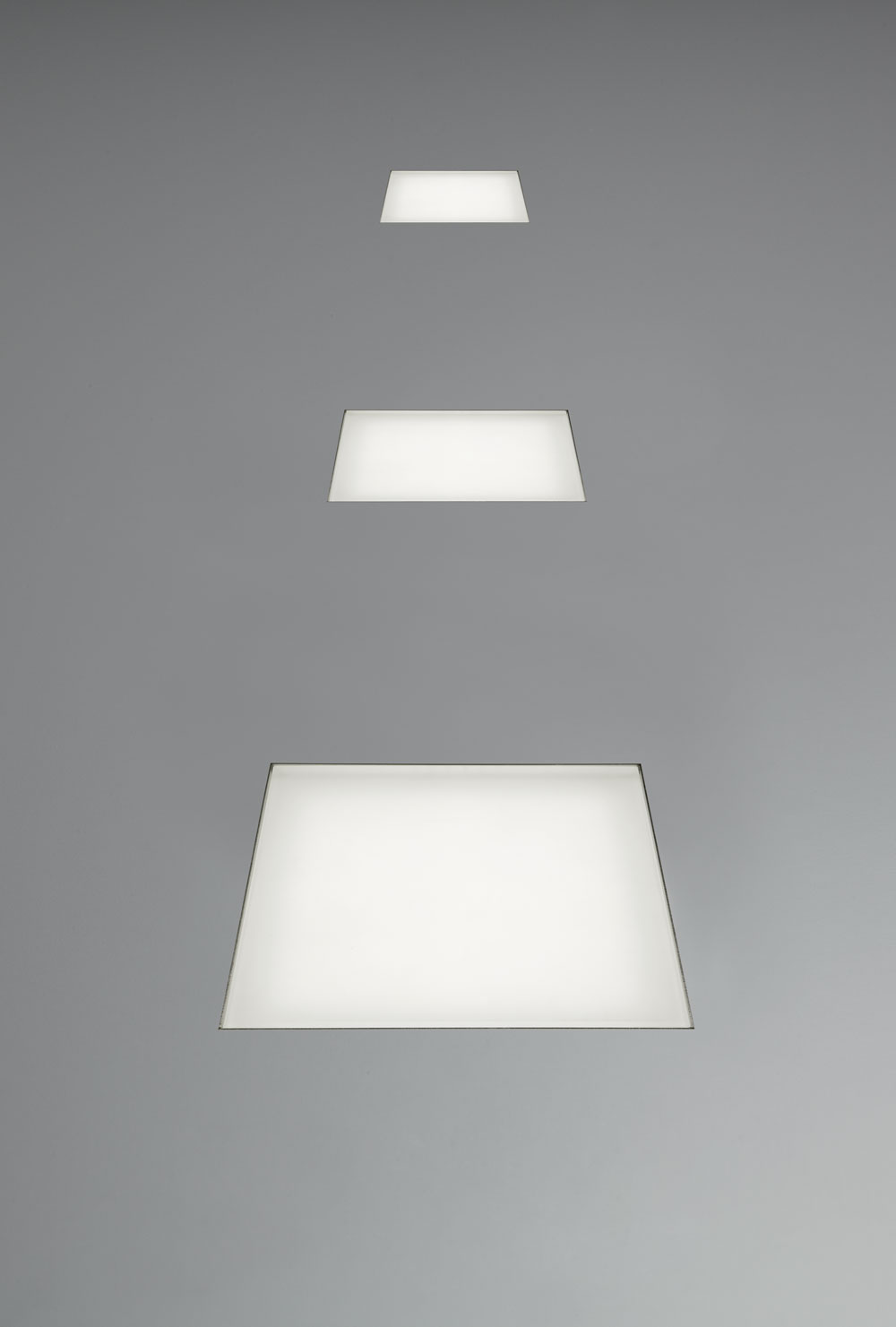

Square marker light with flush tempered glass diffuser for seamless in-ground installation

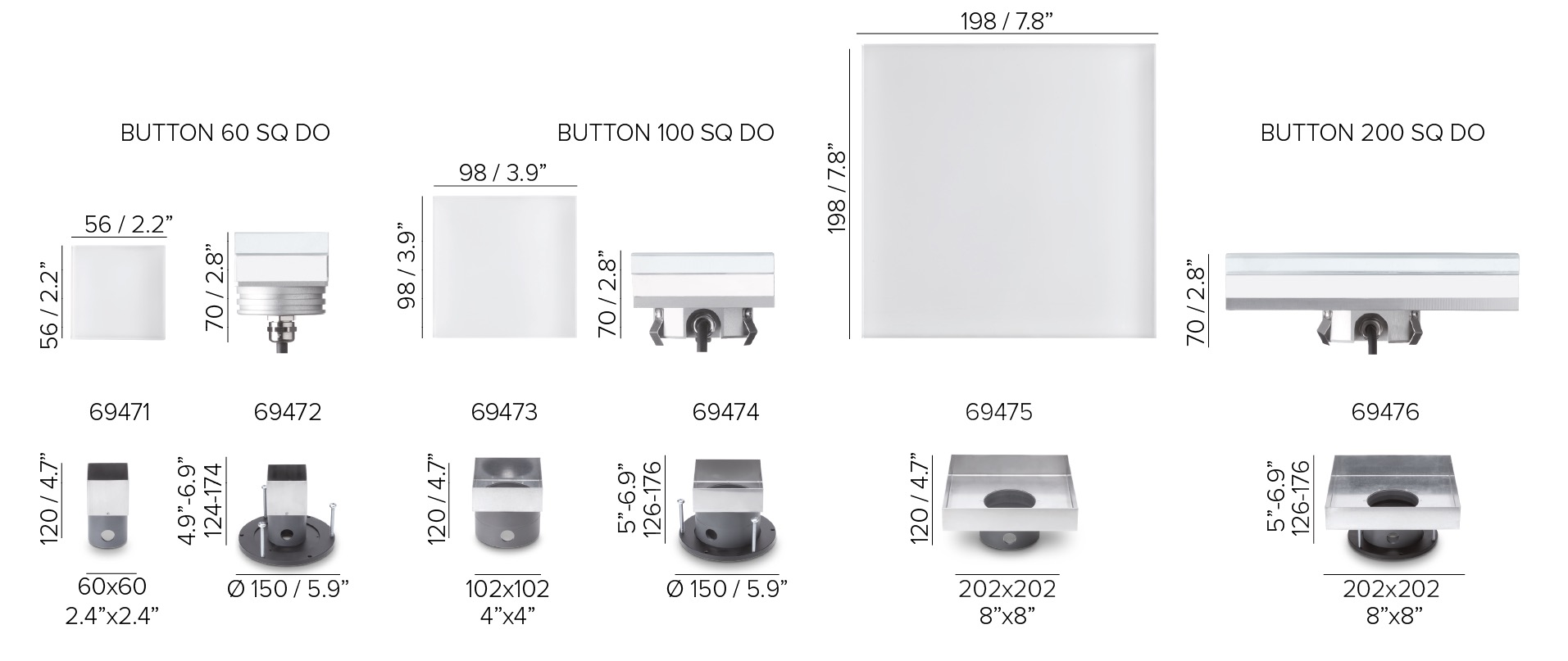

Available in three sizes: BUTTON 60 SQ DO, 2.2”x2.2” – BUTTON 100 SQ DO, 3.9”x3.9” – BUTTON 200 SQ DO, 7.8”x7.8”
Drive over load of 4,400 lbs, IK08
The surface appears evenly lit thanks to the thickness of the tempered glass and the distance from the LEDs. 100% glare-free luminaire
Built in protection from water infiltration and moisture. Suitable for wet location
Available in colour temperatures of 2500K CRI93, 2800K CRI93 and 3800K CRI93
Wattage: BUTTON 60 SQ DO, 2,3W at 24V DC – BUTTON 100 SQ DO, 3W at 24V DC – BUTTON 200 SQ DO, 10W at 24V DC
Built-in unpolarized electronic system
Dimming available in Phase or 0-10v, other dimming options available upon request.
Standards: UL 2108, CSA C22.2

Spec Sheet

Choose options

*Please note: Colour swatches are for reference only and may not exactly match the final product

Shipping delay : On request
