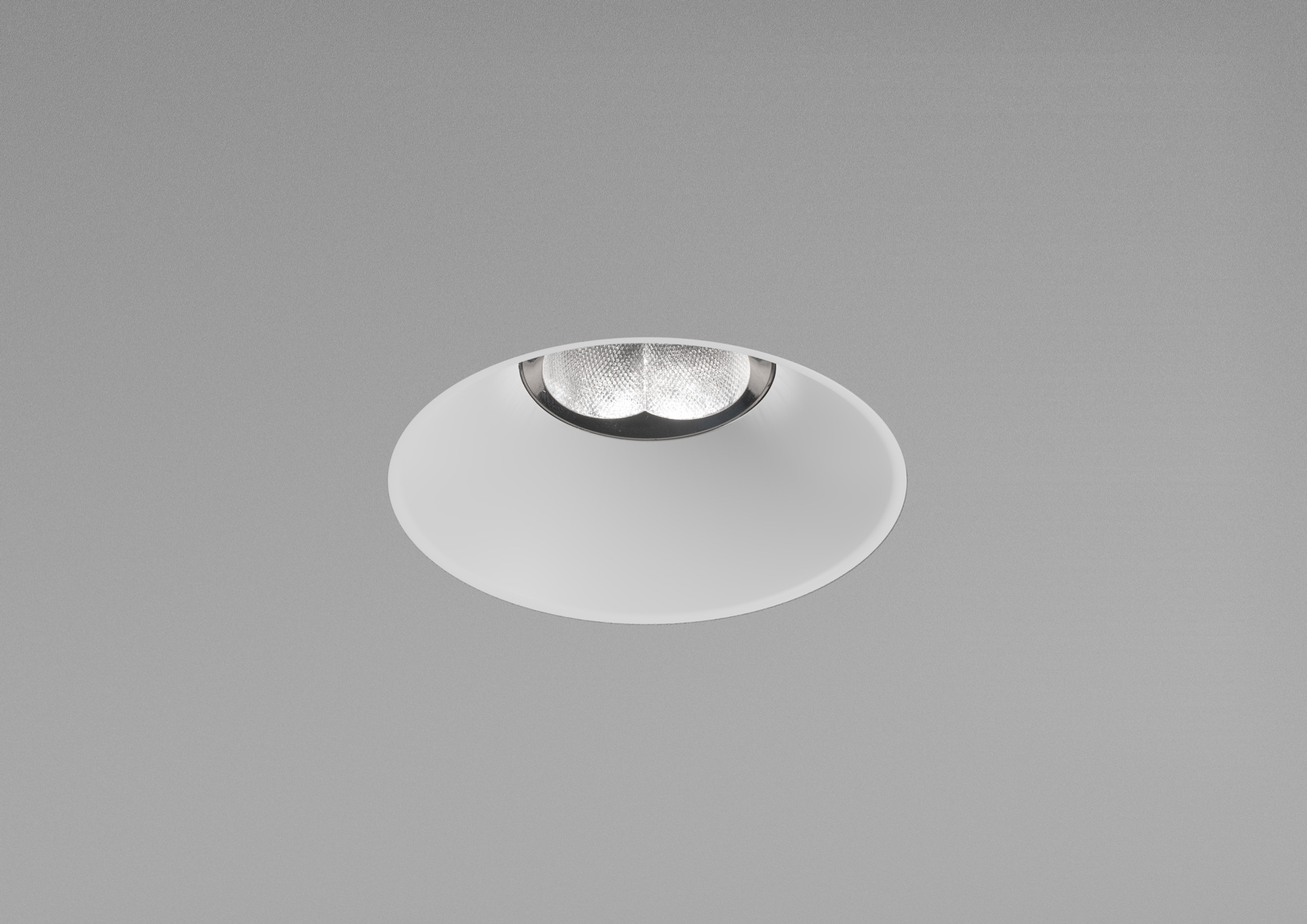

Glare free trim-less downlight with symmetrical or asymmetrical reflector for indoor and outdoor use
Specifications

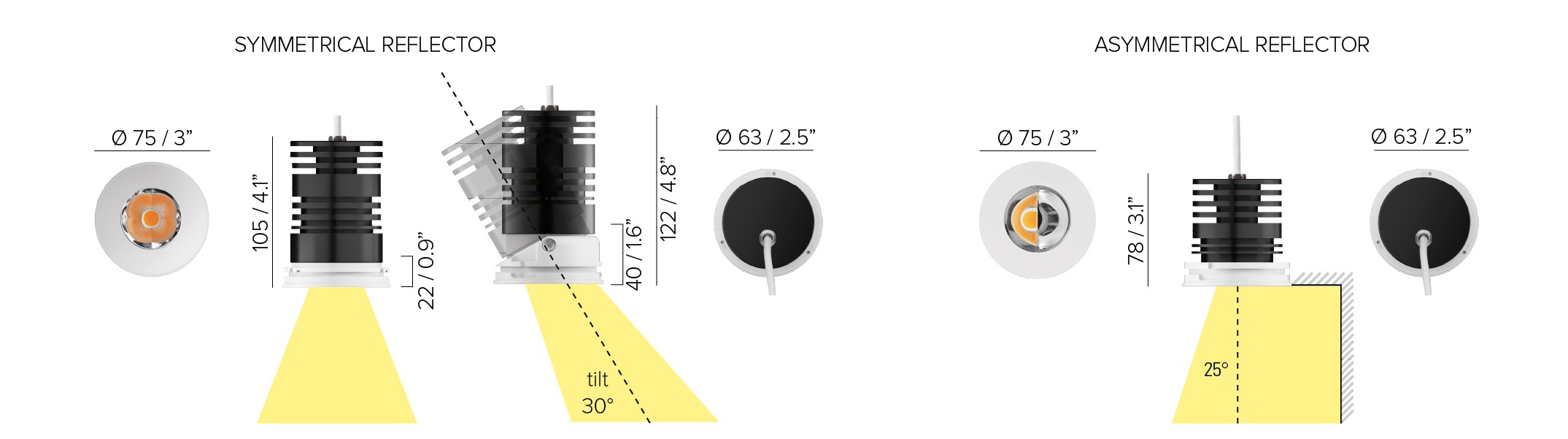

Diameter 2.9’’
Height symmetrical model 4.1’’, height asymmetrical model 3.1’’
Mounting in plasterboard or millwork using mounting frame
Thanks to the design of the reflector, the luminaire is totally glare free

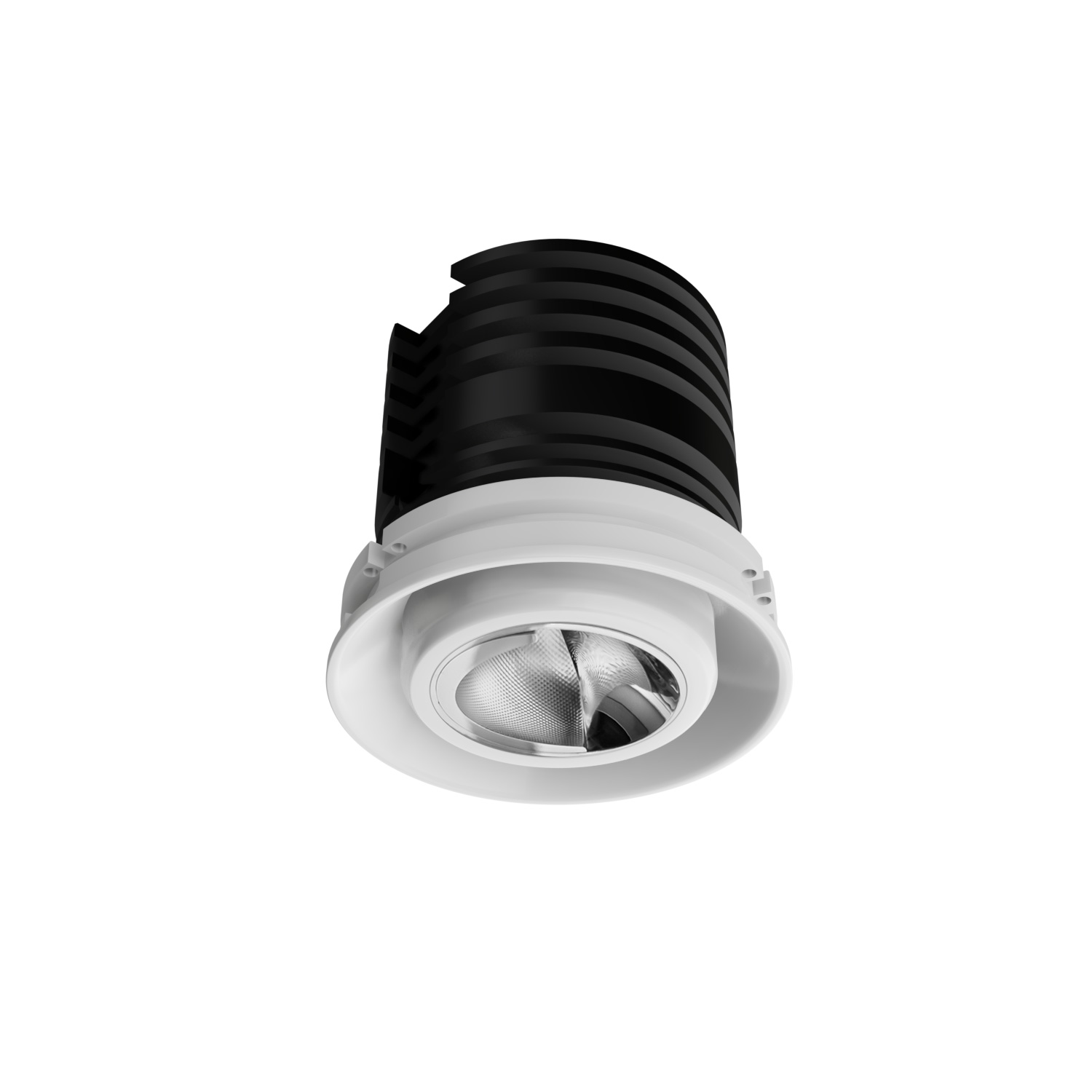

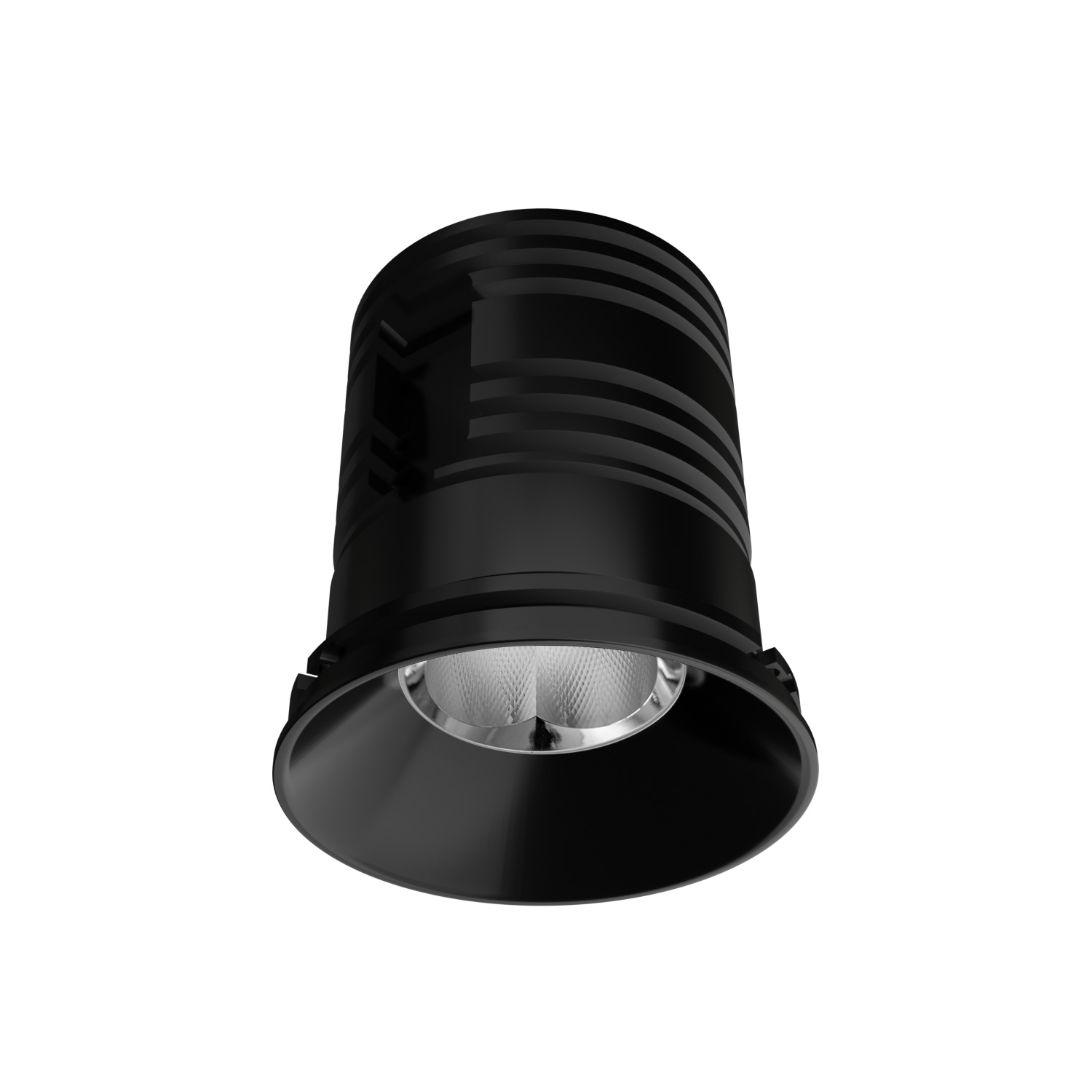

Available in three models: symmetrical reflector 30° (UGR < 10), 50° (UGR < 19), 70° (UGR < 25), asymmetrical reflector (25° + wallwasher) or adjustable up to 30° with symmetrical reflector 30° (UGR < 10)

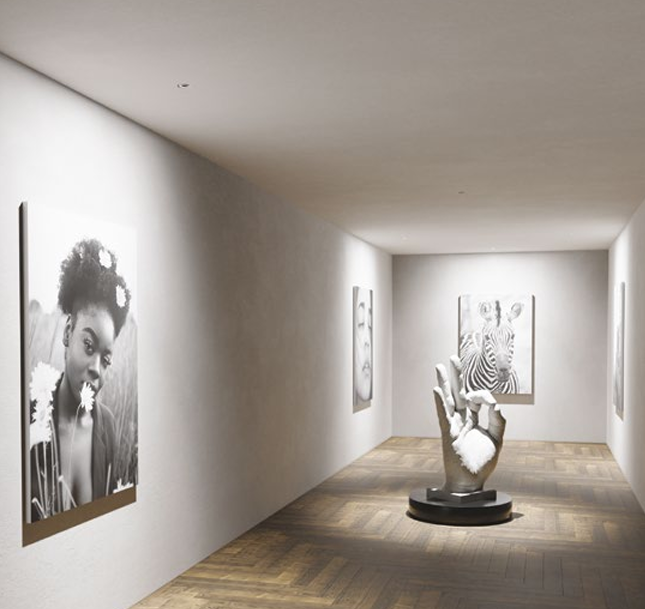

The asymmetrical model delivers 25° homogenous light on the floor and simultaneously a wallwasher effect on the wall. The wallwash is achieved from the upper edge of the wall with no visible dark zones
The symmetrical model 30°, 50° or 70° concentrates 90% of the light within the aperture, delivering homogeneous light on the floor with no “corona effect” or visible double beam spreads
