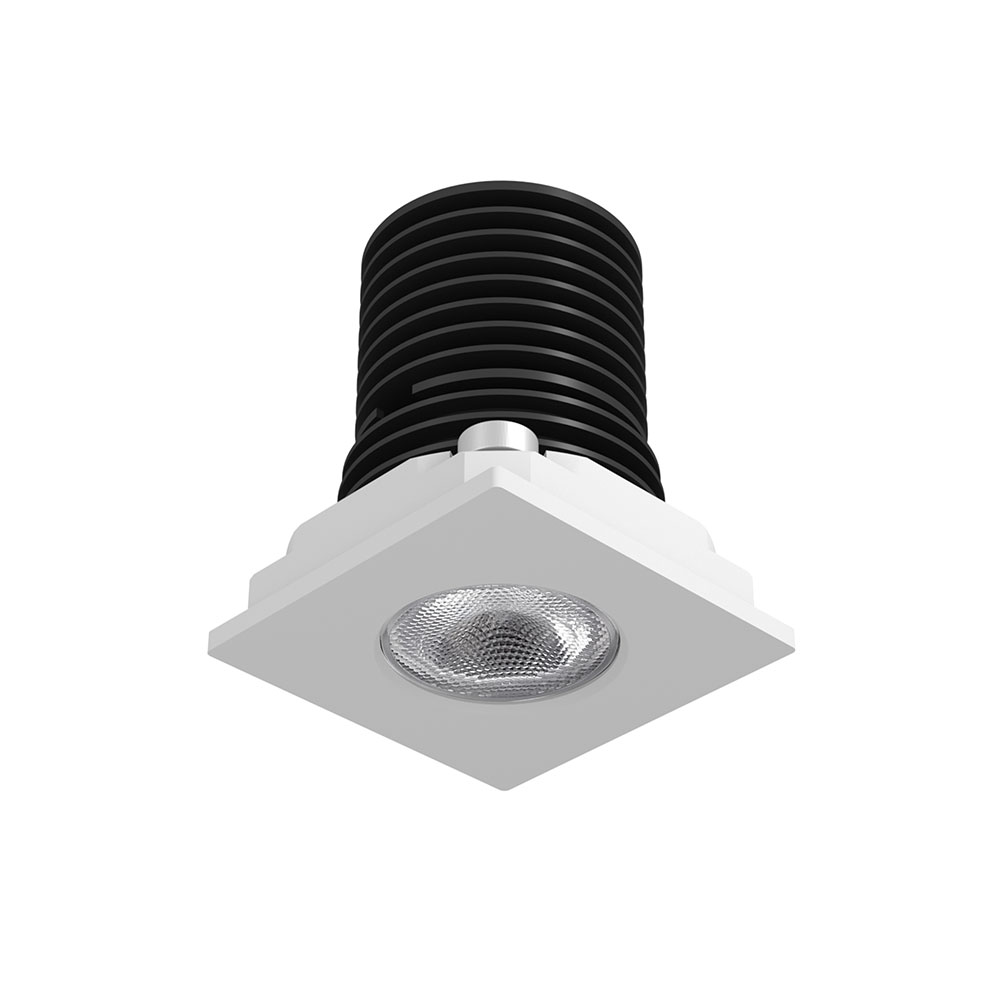

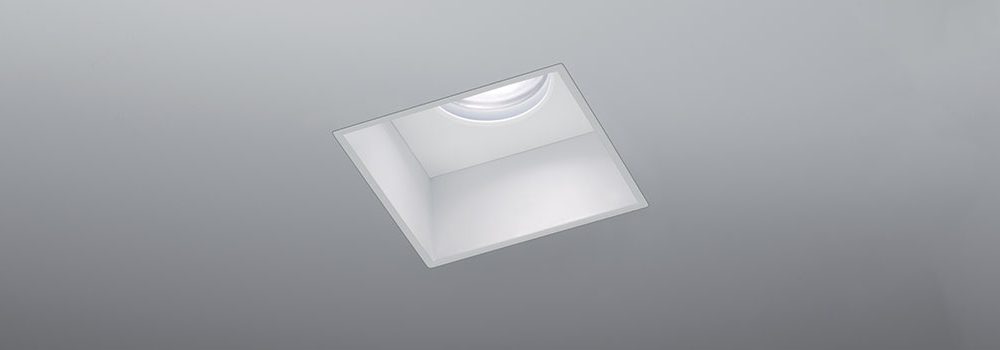

Square plaster-in downlight with minimal visual impact. Indoor and outdoor use for a total integration with architecture
Specifications

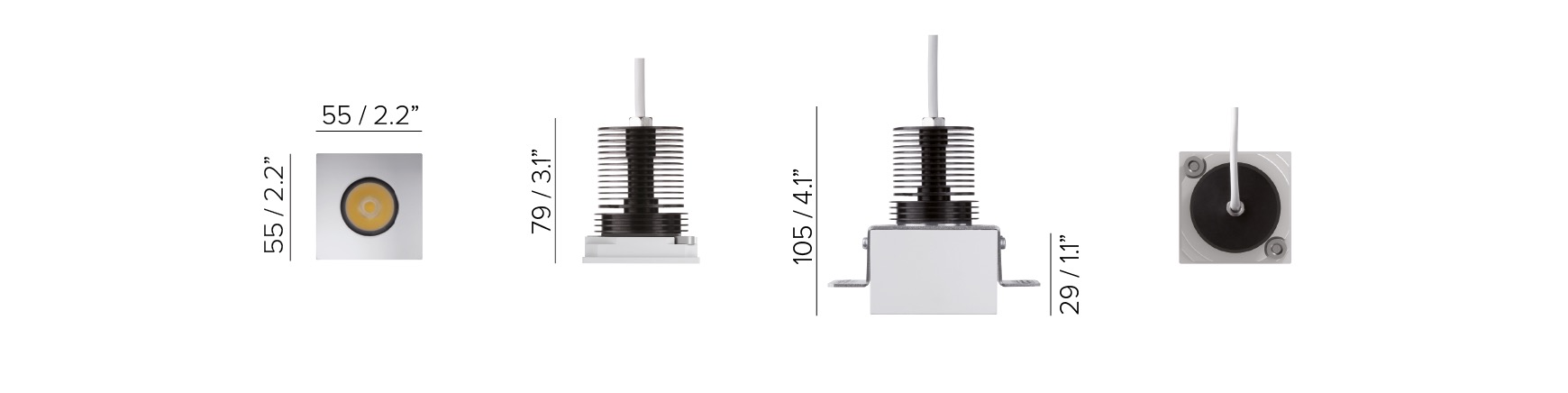

Dimension: 2.4”X2.4”
Available in two models: INSIDE 60 SQ (dry location) e INSIDE 60 SQ (wet location)
Completely trimless luminaire with recessed LED position and option of black internal reflector cup for minimal glare
Mounting frame to be separately ordered. Upon request mounting frame for plasterboard of different thickness
Features a selection of different optics, 16°, 36° and 45°
Available in colour temperatures of 2200K CRI93, 2700K CRI93, 3000K CRI93 and 4000K CRI93
Lamp wattage: 6W at 24V DC and 500 mA
24V DC: features an onboard DC driver that ensures overcurrent protection and it is not polarity sensitive. Electronic control of operating temperature through a thermal sensor that detects overheat and, by self-regulating the current, reduces the LED power. This feature guarantees that the luminaire will last in time with ambient temperature up to 140°F
Dimming available in Phase or 0-10v, other dimming options available upon request.
