INSIDE 40R-AD

B-Light

INSIDE 40R-AD

Price on demand

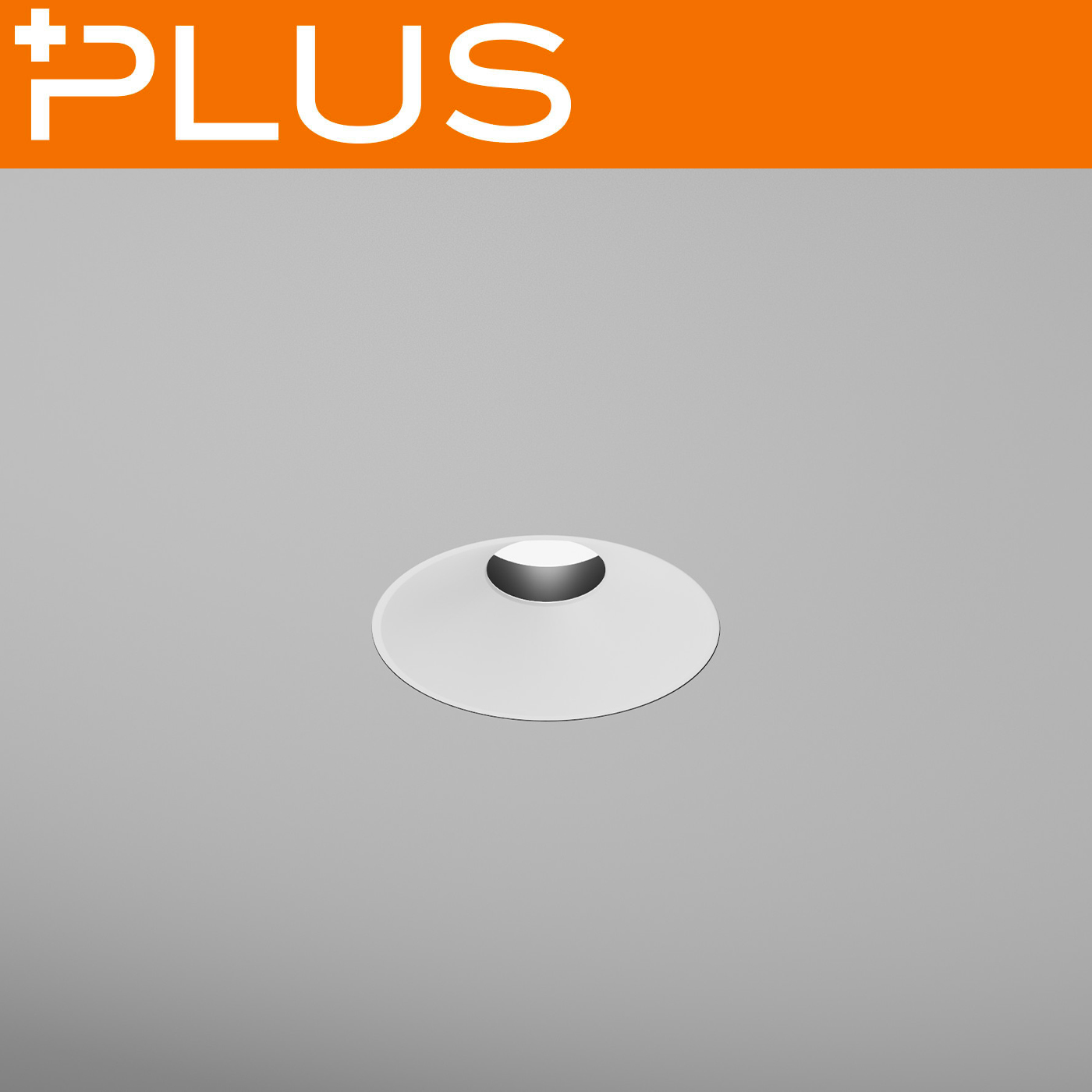

Glare free trimless downlight with symmetrical or asymmetrical reflector for indoor and outdoor use
  • Diameter 1.5″, height 1.6″ / 1.8″/ 2.4″
  • The light aperture has a diameter of only 0.5″
  • Mounting in plasterboard using mounting frame to be installed from below the ceiling or mounting in wood or composite materials using mounting frame to be installed from above the ceiling
  • Thanks to the design of the reflector, the luminaire is totally glare free
  • Available in three models: symmetrical reflector 16°,36°,55°,15°x45° fixed or adjustable and asymmetrical reflector (25° + wallwasher)
  • The asymmetrical model delivers 25° on the floor and simultaneously a wallwasher effect on the wall. The wallwash is achieved from the upper edge of the wall with no visible dark zones
  • Available with color temperatures: 2200K CRI90, 2700K CRI93, 3000K CRI93 o 4000K CRI93
  • Wattage: 3W at 200mA or 6W at 350mA
  • Dimming available in Phase or 0-10v, other dimming options available upon request.
  • Asymmetrical: suitable for dry location. Symmetrical: suitable for dry, damp and wet location
  • Standards: UL 2108, CSA C22.2

Spec Sheet

Choose options

*Please note: Colour swatches are for reference only and may not exactly match the final product

Shipping delay : On request
