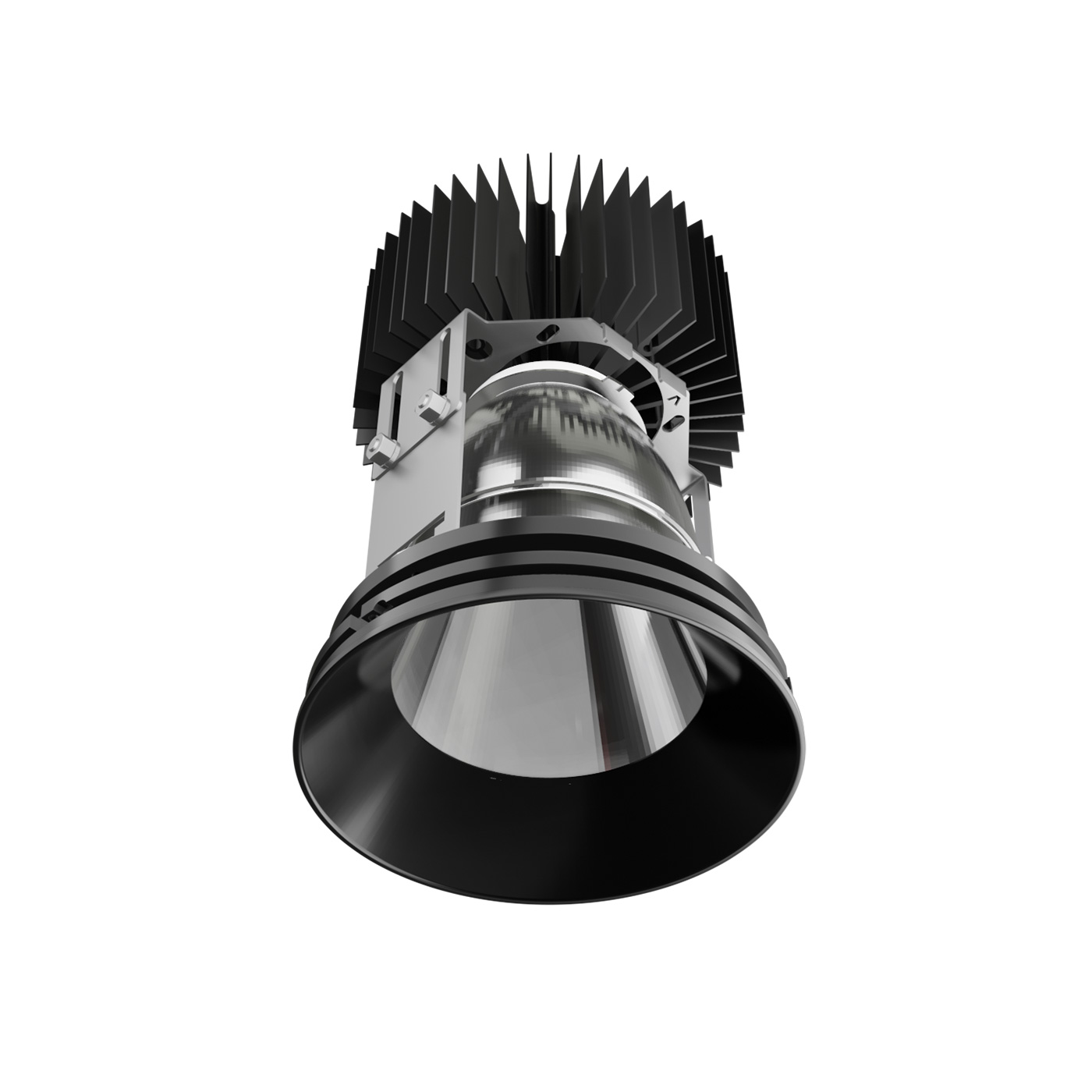

Glare free trim-less downlight with symmetrical or asymmetrical reflector for indoor use
Specifications

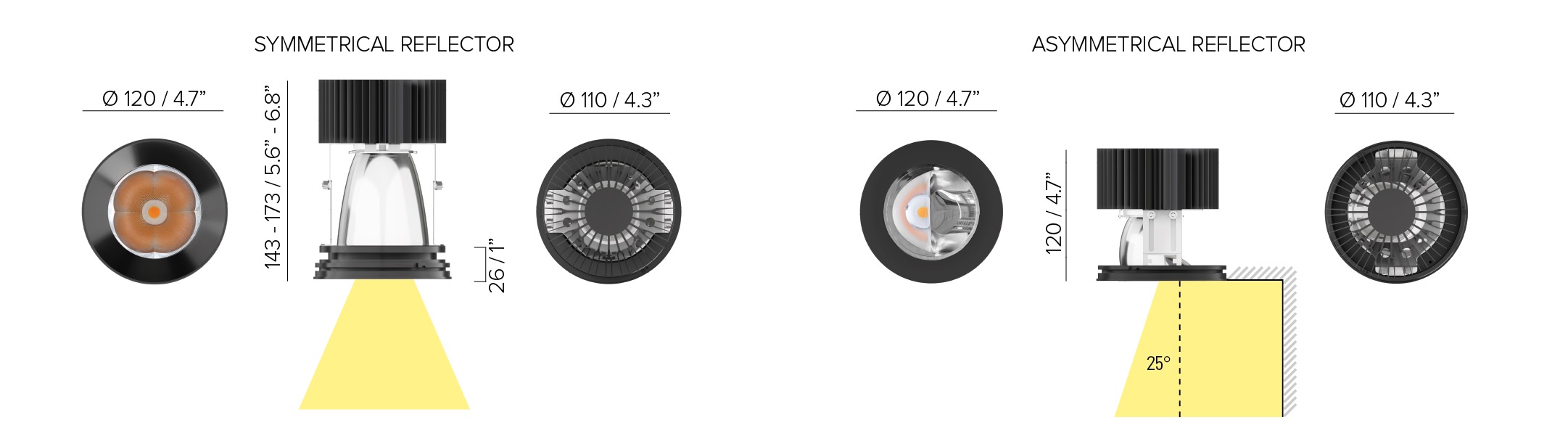

Diameter 4.7’’
Height symmetrical model 5.6’’ or 6.8″, height asymmetrical model 4.7’’
Mounting in plasterboard or millwork using mounting frame
Thanks to the design of the reflector, the luminaire is totally glare free
Available in two models: symmetrical reflector 30° (UGR < 10), 50° (UGR < 19) or asymmetrical reflector (wallwasher + 25°)

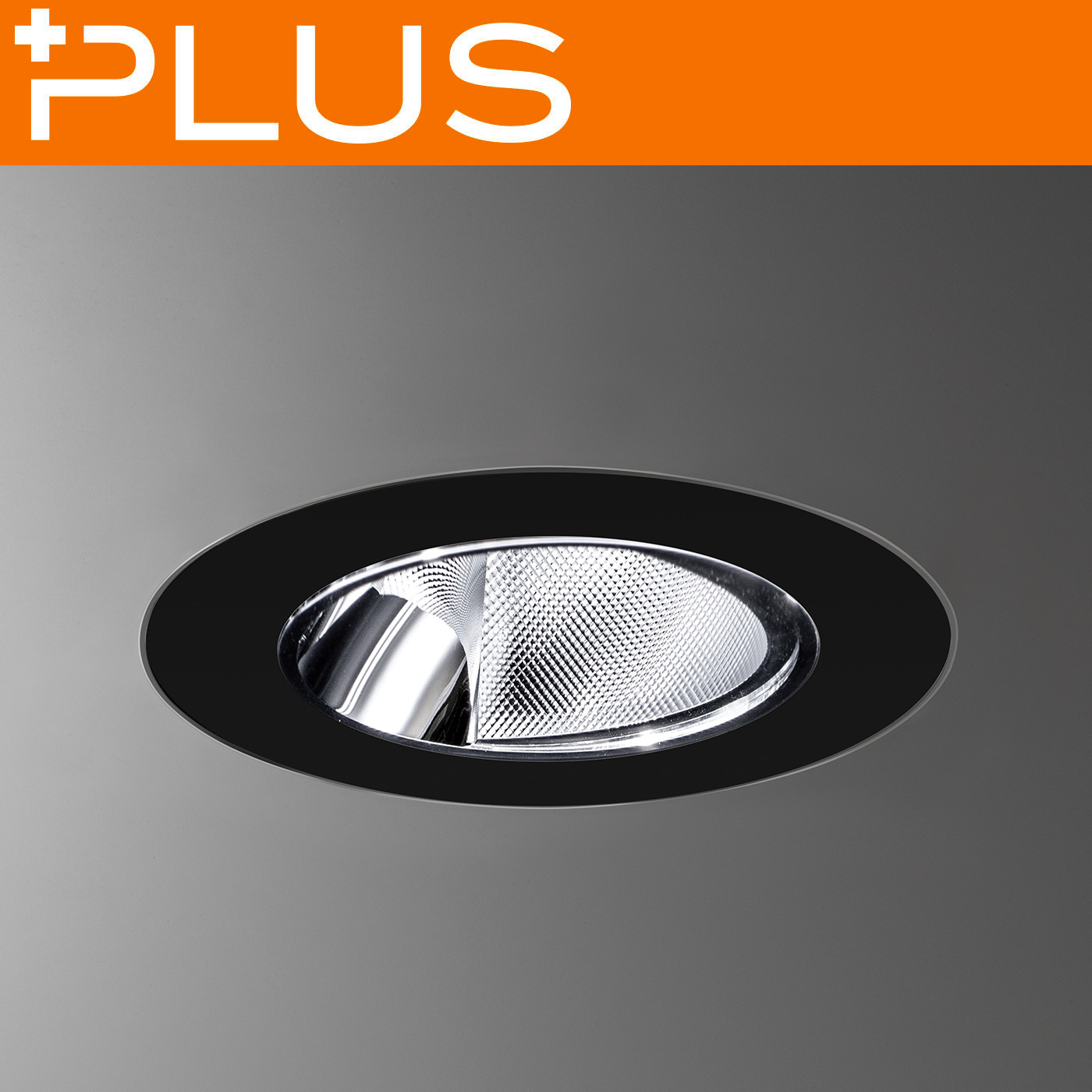

The asymmetrical model delivers homogenous light on the floor and simultaneously a wallwasher effect on the wall. The wallwash is achieved from the upper edge of the wall with no visible dark zones

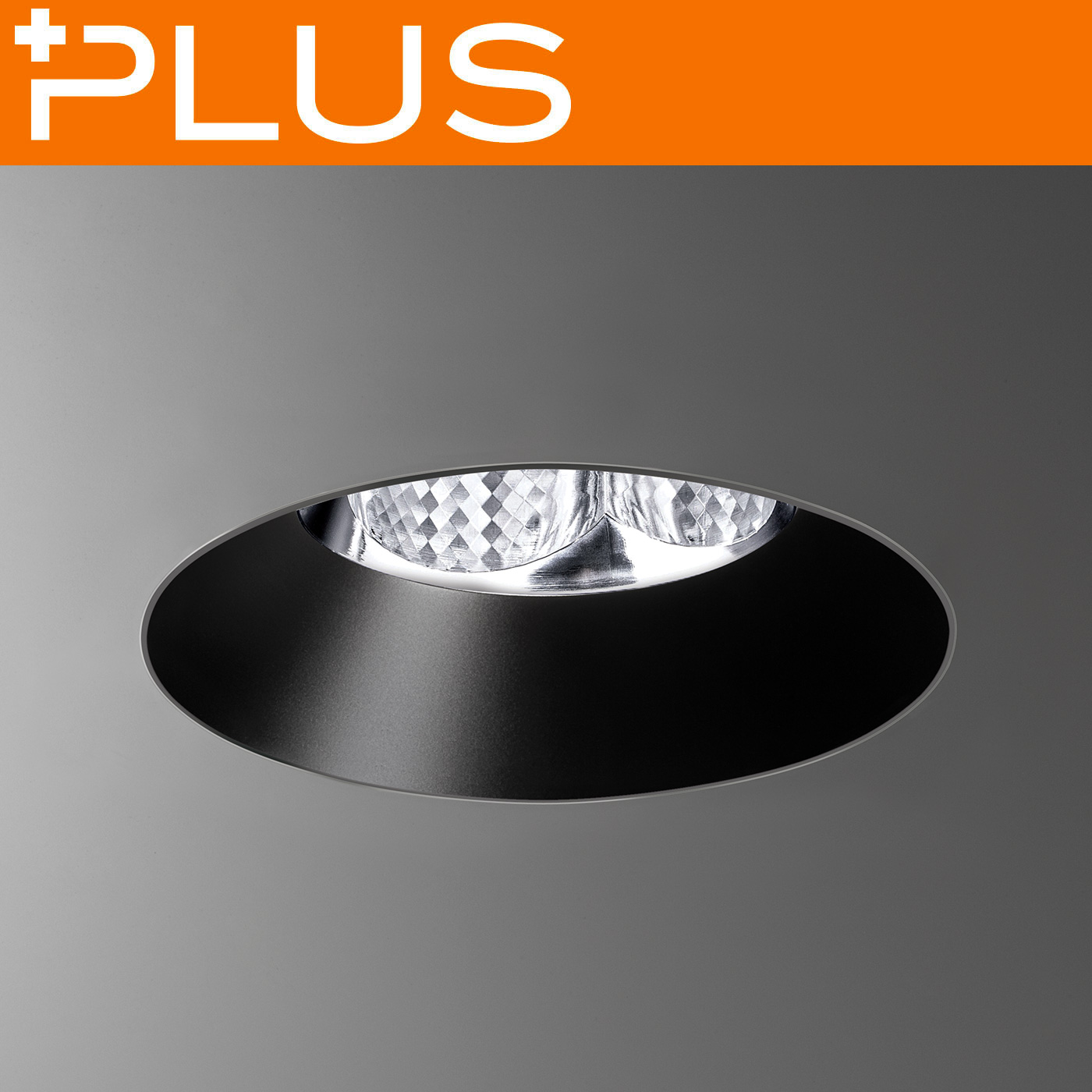

The symmetrical model 30° or 50° concentrates 90% of the light within the aperture, delivering homogenous light on the floor with no “corona effect” or visible double beam spreads
Available in colour temperatures of 2700K CRI93, 3000K CRI93 and 4000K CRI93
Wattage 23W at 700 mA or 30W at 900 mA
Dimming available in Phase or 0-10v, other dimming options available upon request.
