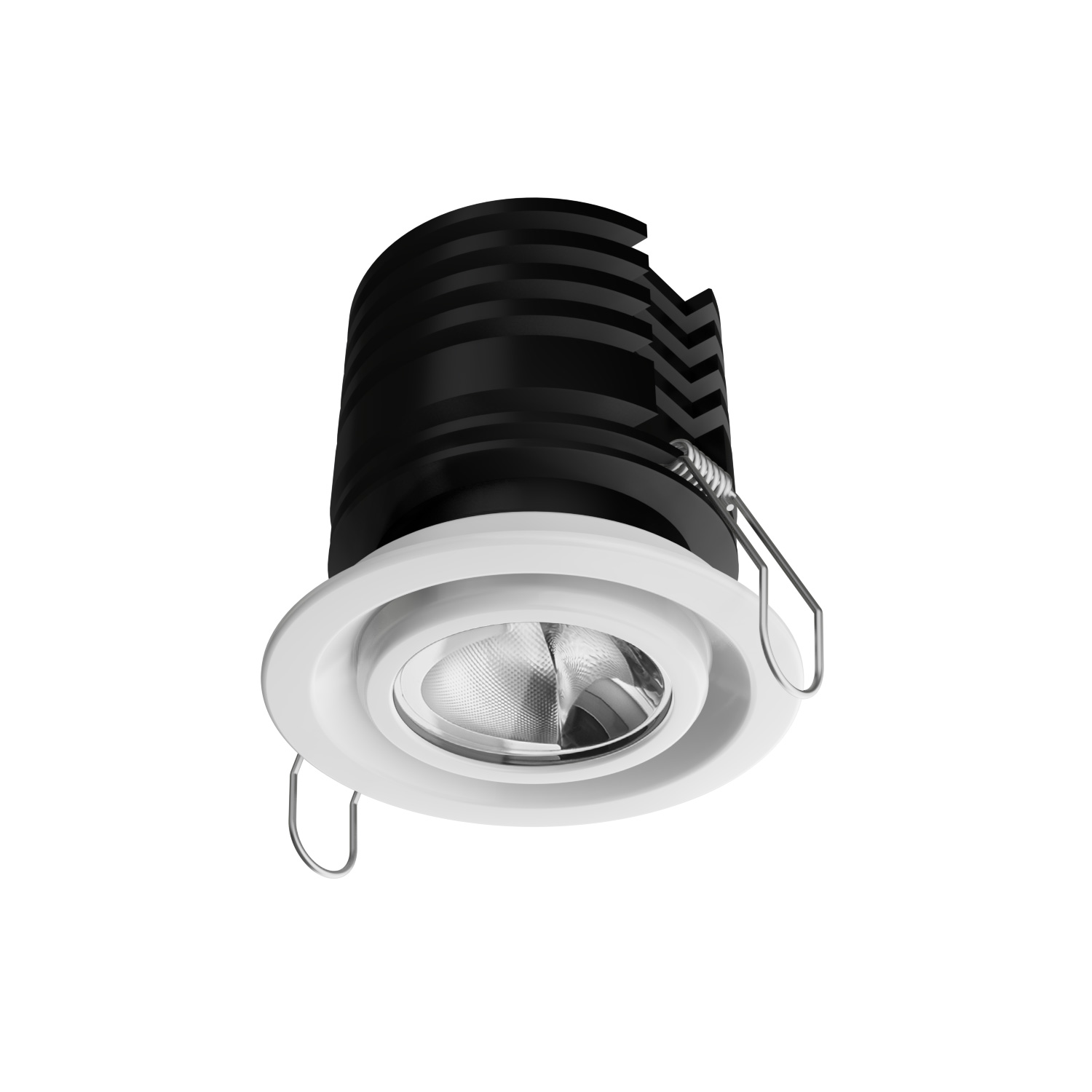

Glare free downlight with symmetrical or asymmetrical light distribution
Specifications
Diameter 3.1’’
Height symmetrical model 4.1’’, height asymmetrical model 3.1’’
Thanks to the design of the reflector, the luminaire is totally glare free
Available in two models: symmetrical reflector 30° (UGR < 10), 50° (UGR < 19), 70° (UGR < 25) or asymmetrical reflector (wallwasher + 25°)

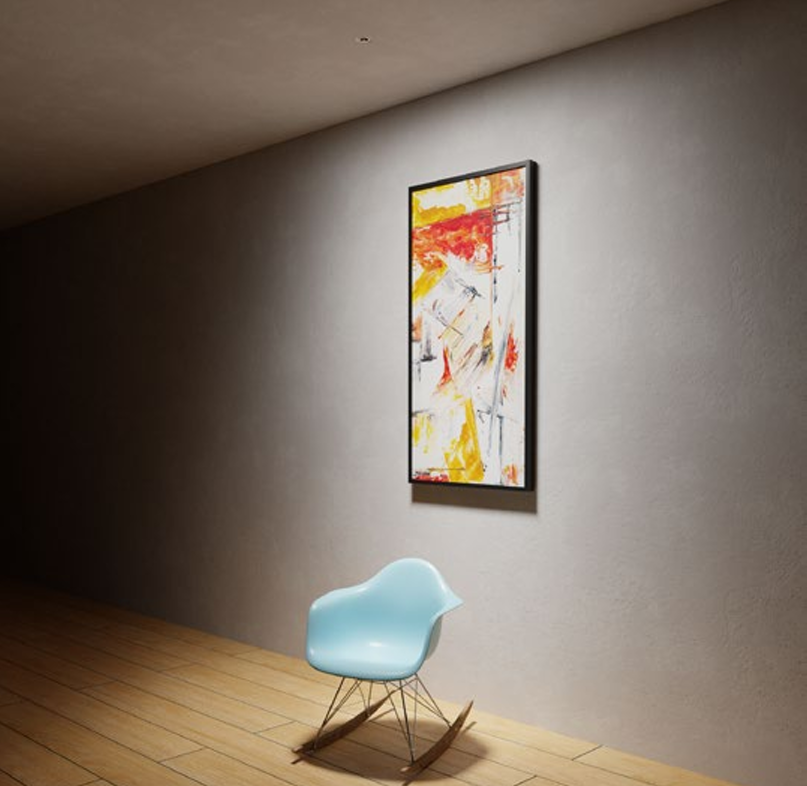

The asymmetrical model delivers 25° homogenous light on the floor and simultaneously a wallwasher effect on the wall. The wallwash is achieved from the upper edge of the wall with no visible dark zones
The symmetrical model 30°, 50° or 70° concentrates 90% of the light within the aperture, delivering homogenous light on the floor with no “corona effect” or visible double beam spreads
